Product Summary
The Intel NHPXA270C5C520 processor provides industry-leading multimedia performance, low-power capabilities, rich peripheral integration and second generation memory stacking. Designed from the ground up for wireless clients, it incorporates the latest Intel advances in mobile technology over its predecessor, the Intel PXA255 processor.
Parametrics
Absolute maximum ratings: (1)Storage temperature: –40 to 125 ℃; (2)Offset voltage between any of the following pins: VCC_CORE –0.3 to 0.3 V; (3)Offset voltage between any of the following pins: VCC_SRAM –0.3 to 0.3 V; (4)Offset voltage between any of the following pins: VCC_MEM –0.3 to 0.3 V; (5)Offset voltage between any of the following pins: VCC_IO –0.3 to 0.3 V; (6)Offset voltage between VCC_LCD<0> and VCC_LCD<1>: –0.3 to 0.3 V.
Features
Features: (1)High-performance processor: Intel XScale microarchitecture with IntelR Wireless MMX Technology, 7 Stage pipeline, 32 KB instruction cache, 32 KB data cache, 2 KB "mini" data cache, Extensive data buffering; (2)256 Kbytes of internal SRAM for high speed code or data storage preserved during low-power states; (3)High-speed baseband processor interface (Mobile Scalable Link).

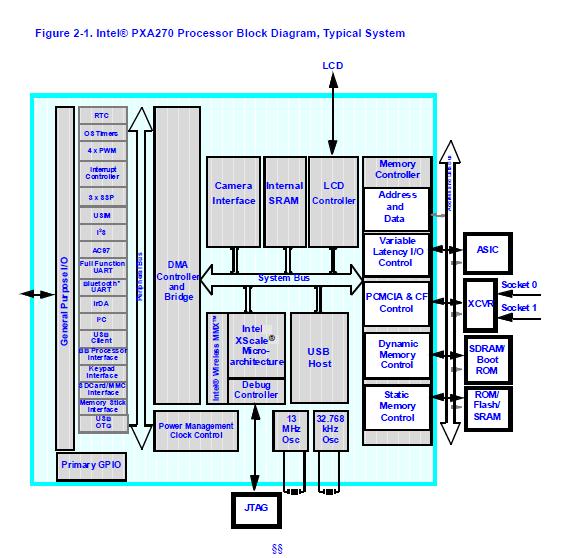

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 NHPXA270C5C520 |
|
IC MPU 32BIT 520MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
NHPXA270C5C312 |
|
IC MPU 32BIT 312MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
|
NHPXA270C5C416 |
|
IC MPU 32BIT 416MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
|
NHPXA270C5C520 |
|
IC MPU 32BIT 520MHZ 356-PBGA |
Data Sheet |
Negotiable |
|
||||
