Product Summary
The MC68HC908JK1CDWE is a 8-bit microcontroller unit (MCU). It is based on the customer-specified integrated circuit (CSIC) design strategy. MC68HC908JK1CDWE uses the enhanced M68HC08 central processor unit (CPU08) and is available with a variety of modules, memory sizes and types, and package types.
Parametrics
MC68HC908JK1CDWE absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to +6.0 V; (2)Input voltage, VIN: VSS–0.3 to VDD +0.3 V; (3)Maximum current per pin excluding VDD and VSS, I: ±25 mA; (4)Storage temperature, TSTG: –55 to +150 ℃; (5)Maximum current out of VSS, IMVSS: 100 mA; (6)Maximum current into VDD, IMVDD: 100 mA.
Features
MC68HC908JK1CDWE features: (1)High-performance M68HC08 architecture; (2)Fully upward-compatible object code with M6805, M146805, and M68HC05 Families; (3)Low-power design; fully static with stop and wait modes; (4)5V and 3V operating voltages; (5)8MHz internal bus operation; (6)RC-oscillator circuit or crystal-oscillator options; (7)In-system FLASH programming.

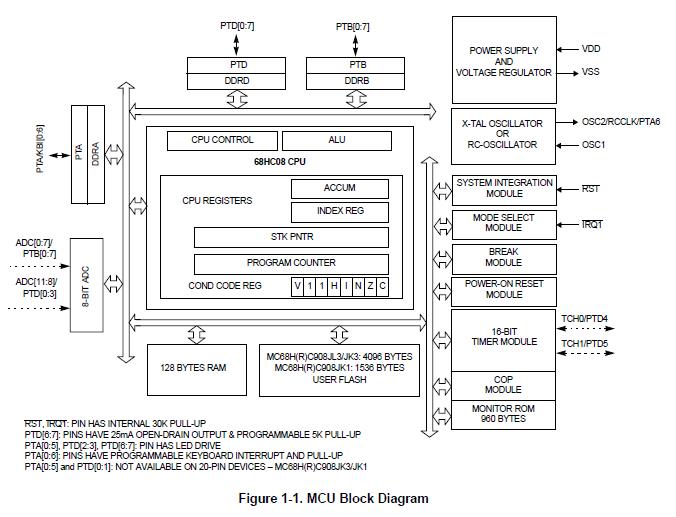

Diagrams
 |
