Product Summary
The CY62128ELL-45SXI is a high performance CMOS static RAM organized as 128K words by 8 bits. This device features advanced circuit design to provide ultra low active current. This is ideal for providing More Battery Life in portable applications such as cellular telephones. The device also has an automatic power down feature that significantly reduces power consumption when addresses are not toggling.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: –65 to +150℃; (2)Ambient Temperature with; (3)Power Applied: –55 to +125℃; (4)Supply Voltage to Ground Potential: –0.5V to 6.0V (VCC(max) + 0.5V); (5)Output Current into Outputs (LOW): 20 mA; (6)Latch up Current: > 200 mA.
Features
Features: (1)Very high speed: 45 ns; (2)Voltage range: 4.5V to 5.5V; (3)Pin compatible with CY62128B; (4)Ultra low standby power; (5)Ultra low active power; (6)Easy memory expansion with CE1, CE2, and OE features; (7)Automatic power down when deselected; (8)CMOS for optimum speed and power; (9)Offered in standard Pb-free 32-pin STSOP, 32-pin SOIC, and 32-pin TSOP I packages.

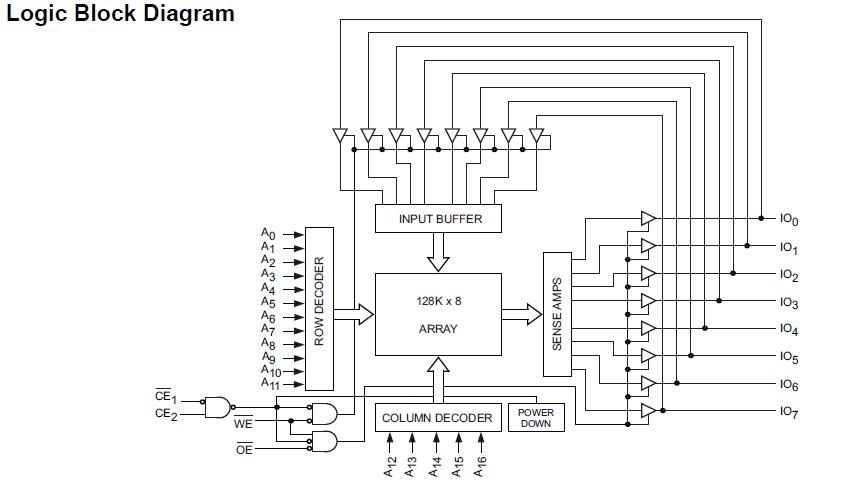

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY62128ELL-45SXI |
Cypress Semiconductor |
SRAM 1M MOBL ULTRA LO PWR HI SPD IND |
Data Sheet |
|
|
||||||||||||
|
CY62128ELL-45SXIT |
Cypress Semiconductor |
SRAM 1M MOBL ULTRA LO PWR HI SPD IND |
Data Sheet |
|
|
||||||||||||
