Product Summary
The AT45DB021D-SH-T is a 2.7V, serial-interface Flash memory ideally suited for a wide variety of digital voice-, image-, program code- and data-storage applications. The device supports RapidS serial interface for applications requiring very high speed operations.
Parametrics
Absolute maximum ratings: (1)Temperature under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)All Input Voltages (except VCC but including NC pins)) with Respect to Ground:-0.6V to +6.25V; (4)All Output Voltages with Respect to Ground:-0.6V to VCC + 0.6V.
Features
Features: (1)Single 2.7V to 3.6V Supply; (2)RapidS Serial Interface: 66 MHz Maximum Clock Frequency; (3)JEDEC Standard Manufacturer and Device ID Read; (4)100,000 Program/Erase Cycles Per Page Minimum; (5)Data Retention – 20 Years; (6)Industrial Temperature Range; (7)Green (Pb/Halide-free/RoHS Compliant) Packaging Options; (8)Low-power Dissipation.

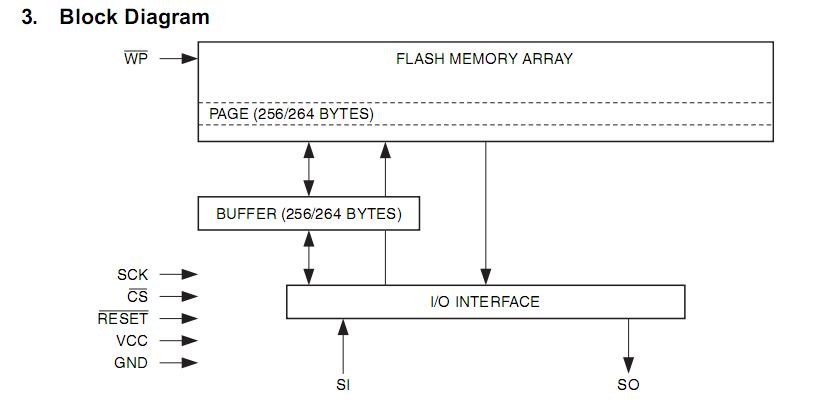

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT45DB021D-SH-T |
Atmel |
Flash 2M Dataflash |
Data Sheet |
Negotiable |
|
||||||||||||
